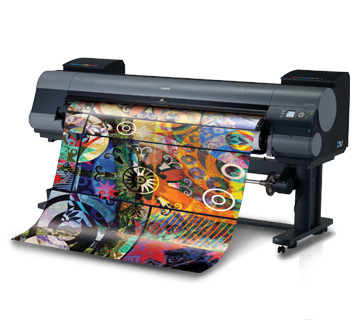

Built to put advanced printing technologies into the hands of artists and photographers.
Delivers impressive 60” color output, strength in paper handling and speed in output everything a professional needs to productively and efficiently create enhanced color materials.
12-colour ink system
Print size: 60"
Optimised for graphics
Print Head
PF-05
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200dpi
Number of Nozzles
2,560 Nozzles per Colour (30,720 Total)
Droplet Size
4 Picoliter
Nozzle Pitch (Head Resolution)
1200dpi x Two Rows
Ink Tank
Ink Type
LUCIA EX (pigment-based)
Model
330ml:
PFI8306 MBK/BK/PC/C/PM/M/Y/R/G/B/GY/PGY
700ml:
PFI8706 MBK/BK/PC/C/PM/M/Y/R/G/B/GY/PGY
Ink Capacity
330ml / 700ml each (bundled starter ink: 330ml)
Number of Colours
12
Ink Supply Method
Tubing system (with sub-tank)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Printer Controller
L-COA Controller
Printer Memory
640MB
Media feed
One Roll, Front-loading, Front Output
Cut sheet (Front-loading, Front Output (Manual feed using media locking lever)
Hard Disk
250GB
Media Width
Roll paper:
254 - 1524mm
Cut sheet:
203 - 1524mm
Media size
Cutsheet
ISO A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0, DIN C4, C3, C2, C1, C0, JIS B4, B3, B2, B1, B0, ANSI 8.5" x 11", 8.5" x 14", 11" x 17", 13" x 19", 17" x 22", 22" x 34", 28" x 40", 34" x 44", ARCH 9" x 12", 12" x 18", 18" x 24", 24" x 36", 26" x 38", 27" x 39", 30" x 42", 36" x 48", Photo 20" x 24", 18" x 22", 14" x 17", 12" x 16", 10" x 12", 10" x 15", 8" x 10", 16" x 20" (US Photo size), Poster 20" x 30", 30" x 40", 42" x 60", 44" x 62", 300 x 900 mm, Others 13" x 22"
Canon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft® Word / Excel / PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature
Printer Language
GARO (Canon Proprietary)
Operating Systems
Windows® (XP / Vista 32/64bit / Windows 7 32/64bit)
Macintosh® (OSX)
Interface
Standard (Built-in)
USB 2.0 Hi-Speed, 10 / 100 / 1000Base-T / TX
Acoustic Noise
Operation
Approx. 52dB (A) or Less
Standby
35dB (A) or Less
Acoustic Power
Approx. 68dB
Power Supply
AC 100 - 240V (50 - 60Hz)
Power Consumption
Maximum
190W or Less
Standby (100 - 120V)
5W or Less
Standby (220 - 240V)
6W or Less
Power Off
0.5 W or Less
Certifications
International Energy Star Program (WW), RoHS directive, IT ECO Declaration (Europe), WEEE (Europe / India), Executive Order of the President of the United States of America, China RoHS directive, Erp directive, REACH ,EPEAT, SPRING
Operational Environment
Temperature
15 - 30°C
Relative Humidity
10 - 80% (No Condensation)
Dimensions (W x D x H)
2,299 (W) x 766 (D) x 1,144 (H) mm (with Printer Stand)
